CPX-AP-I AP Diagnostics
Nabil Salman, Mechatronics Application Engineer, Festo USA
Diagnosing Automation Platform Communications with Festo CPX-AP-I

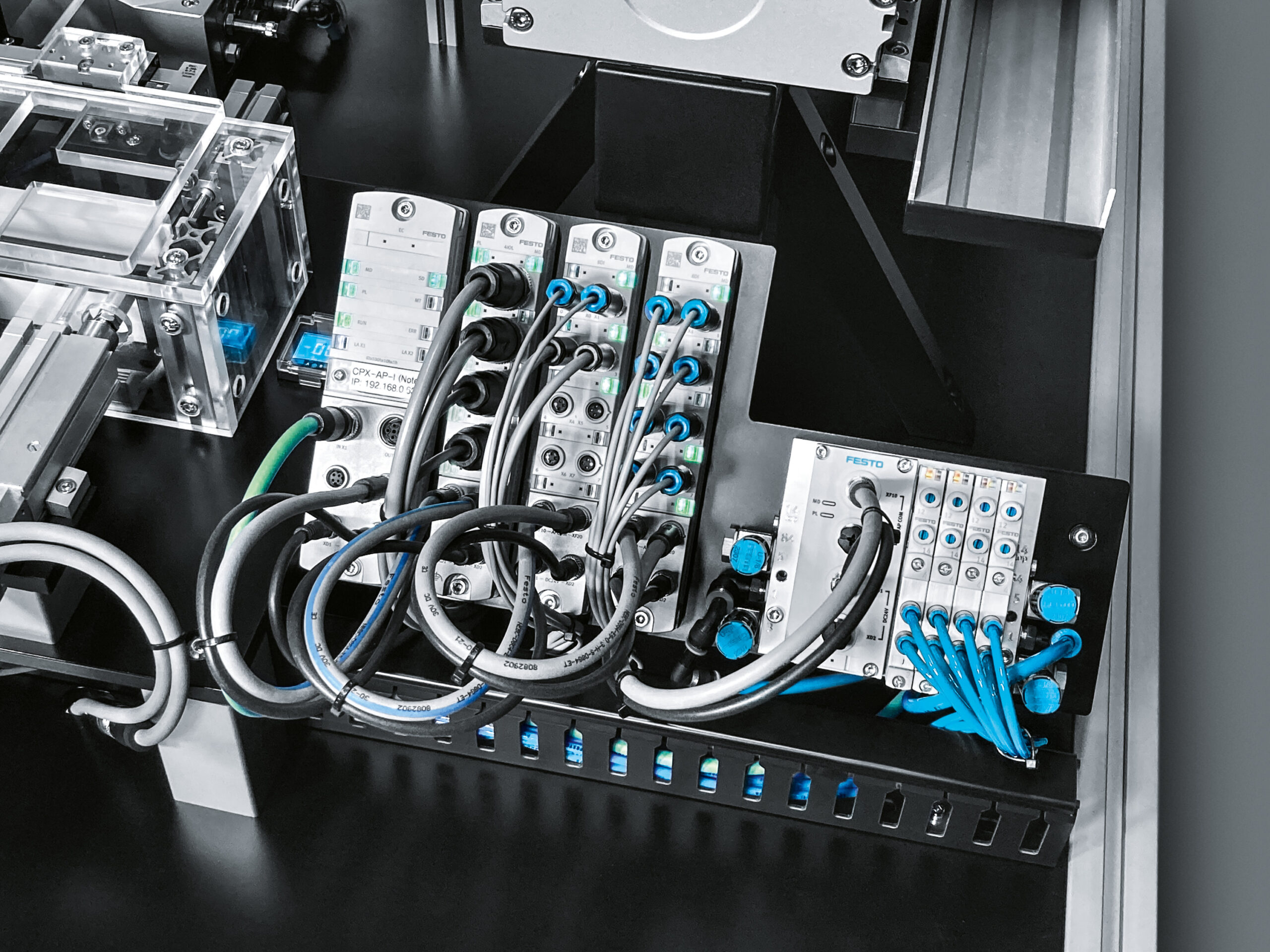

The primary purpose of diagnosing communications of the automation platform on a Festo CPX-AP-I system is to ensure reliable and accurate data exchange for effective machine control and process automation. The CPX-AP-I is a modular I/O system designed for high-performance communication, and any disruptions or misconfigurations can lead to process inefficiencies, system downtime, or safety risks. Diagnostic efforts help identify issues such as AP network quality, incorrect configurations, and hardware malfunctions. This enhances overall system reliability, performance, and maintainability in industrial applications.

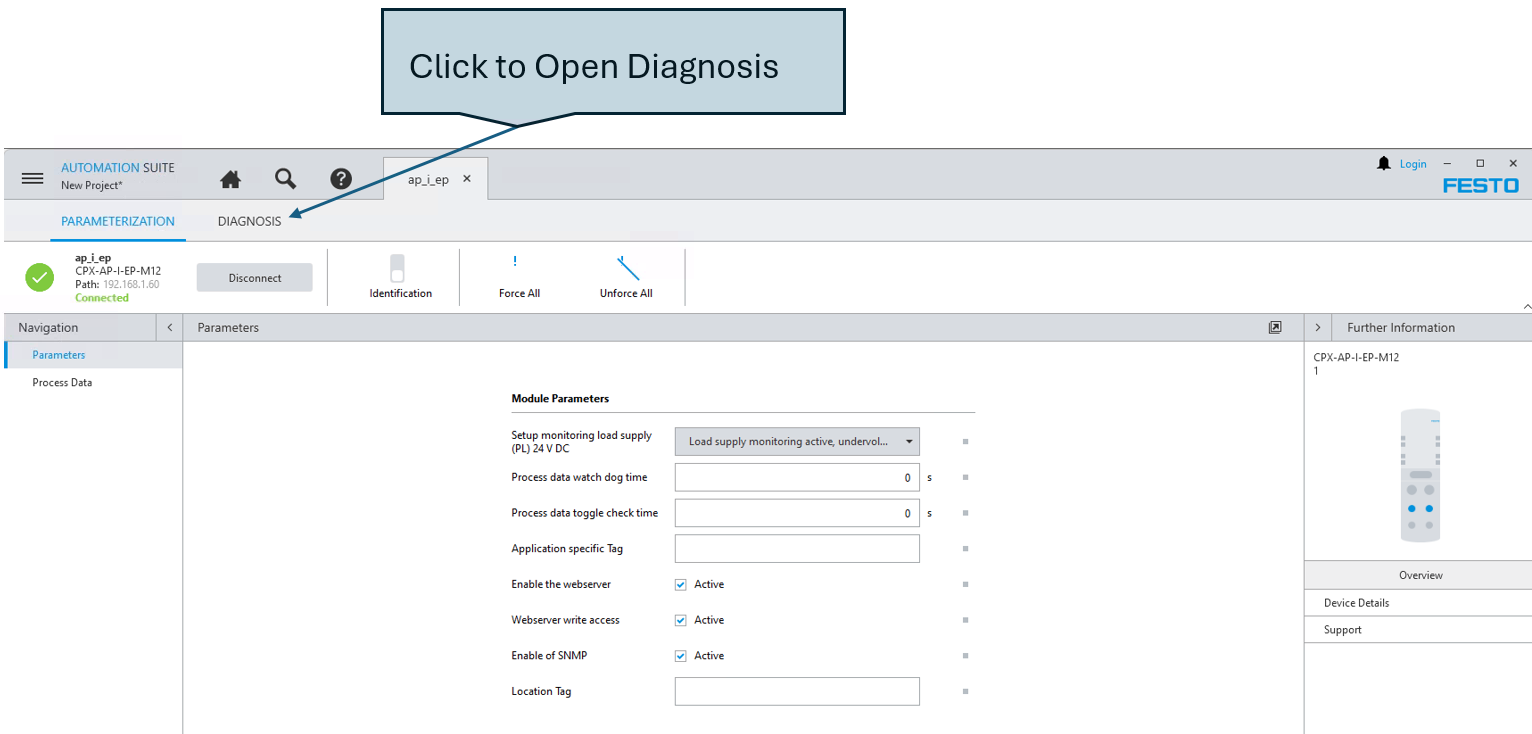

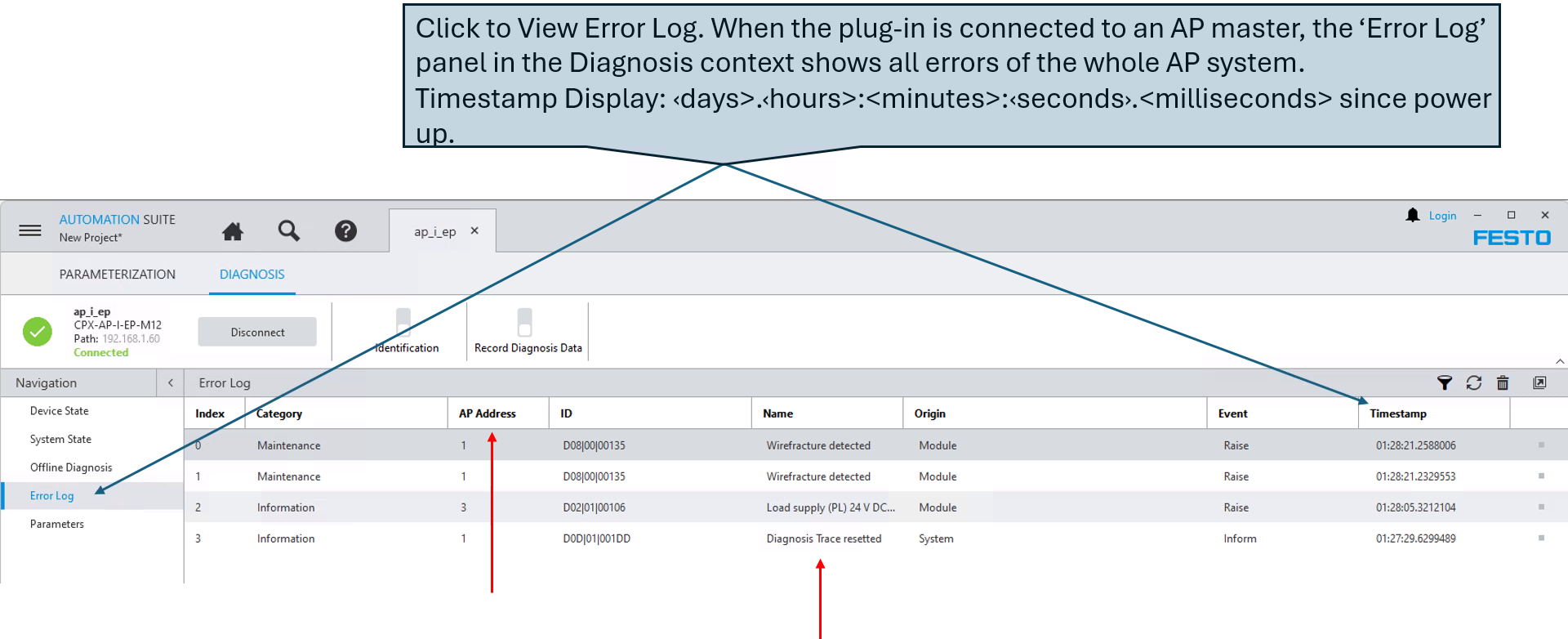

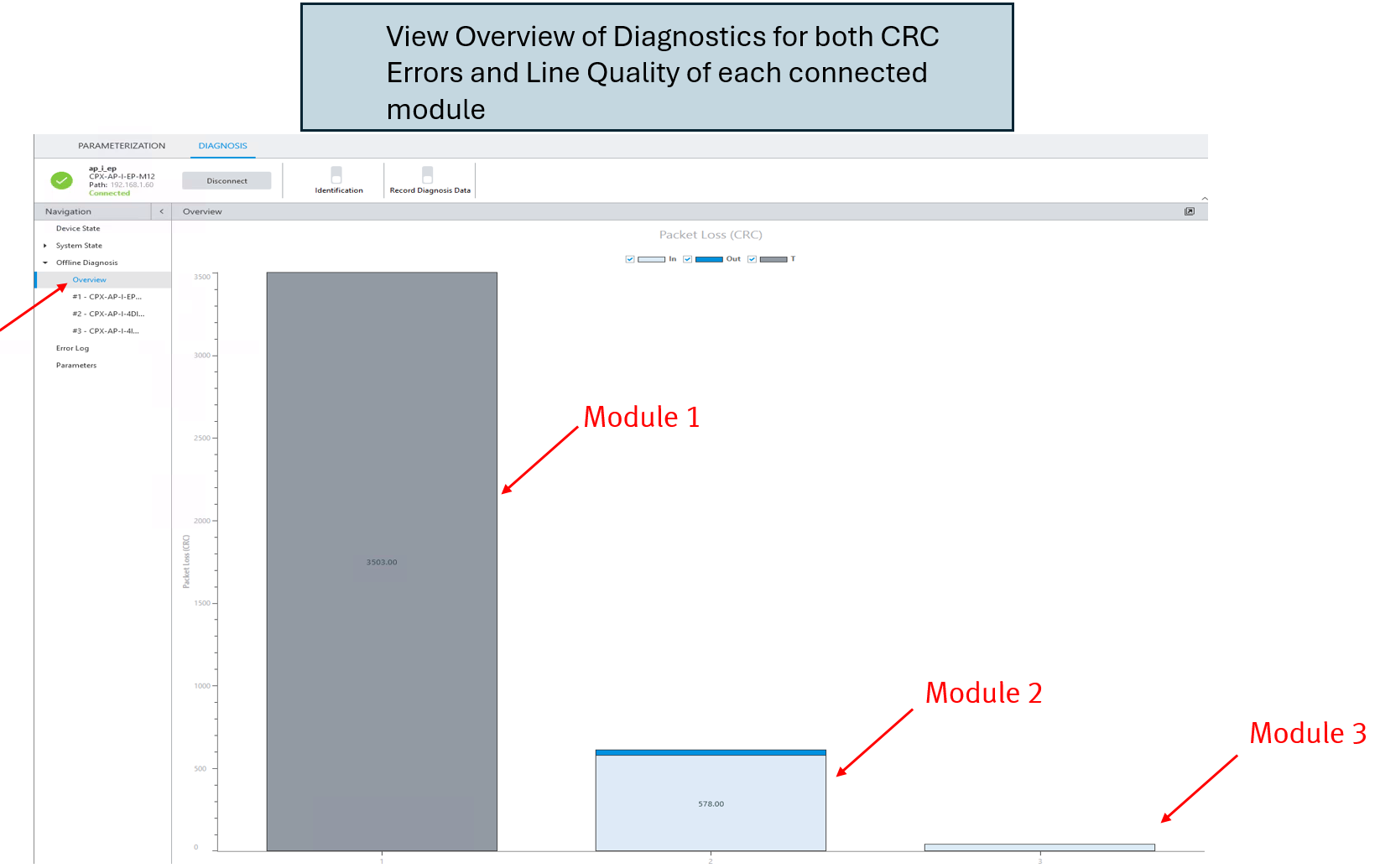

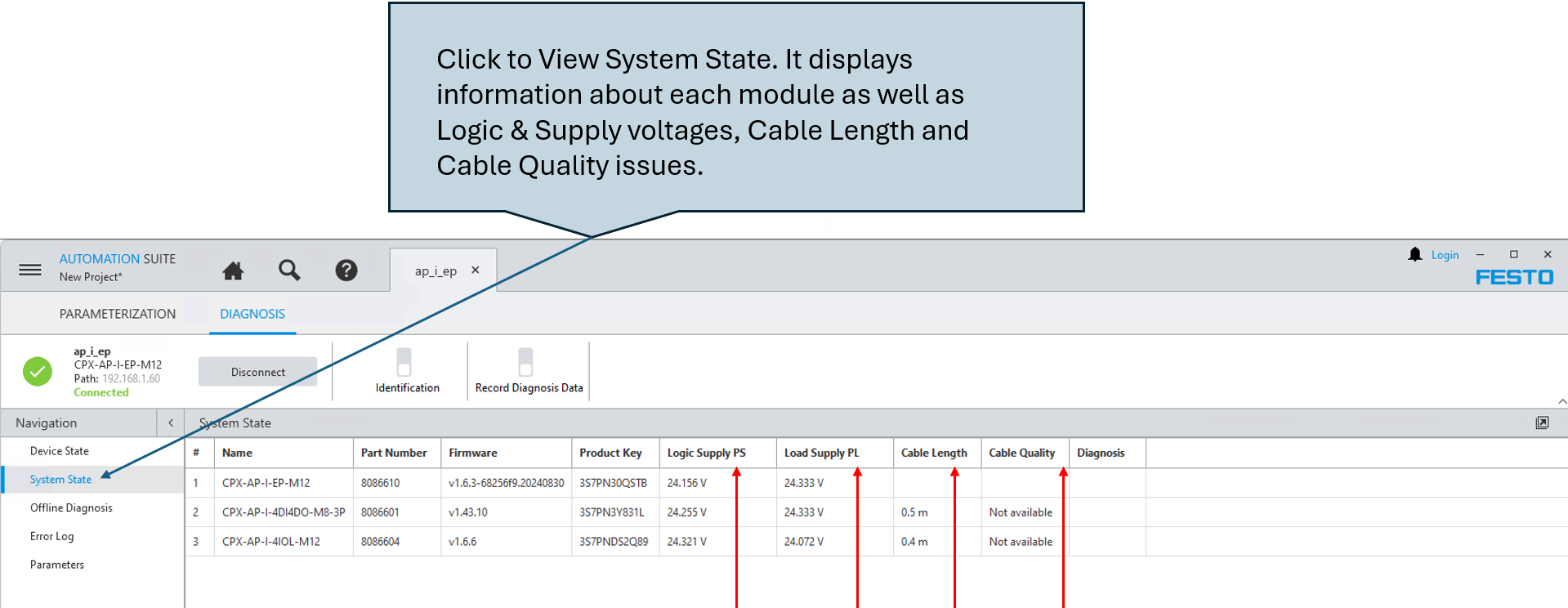

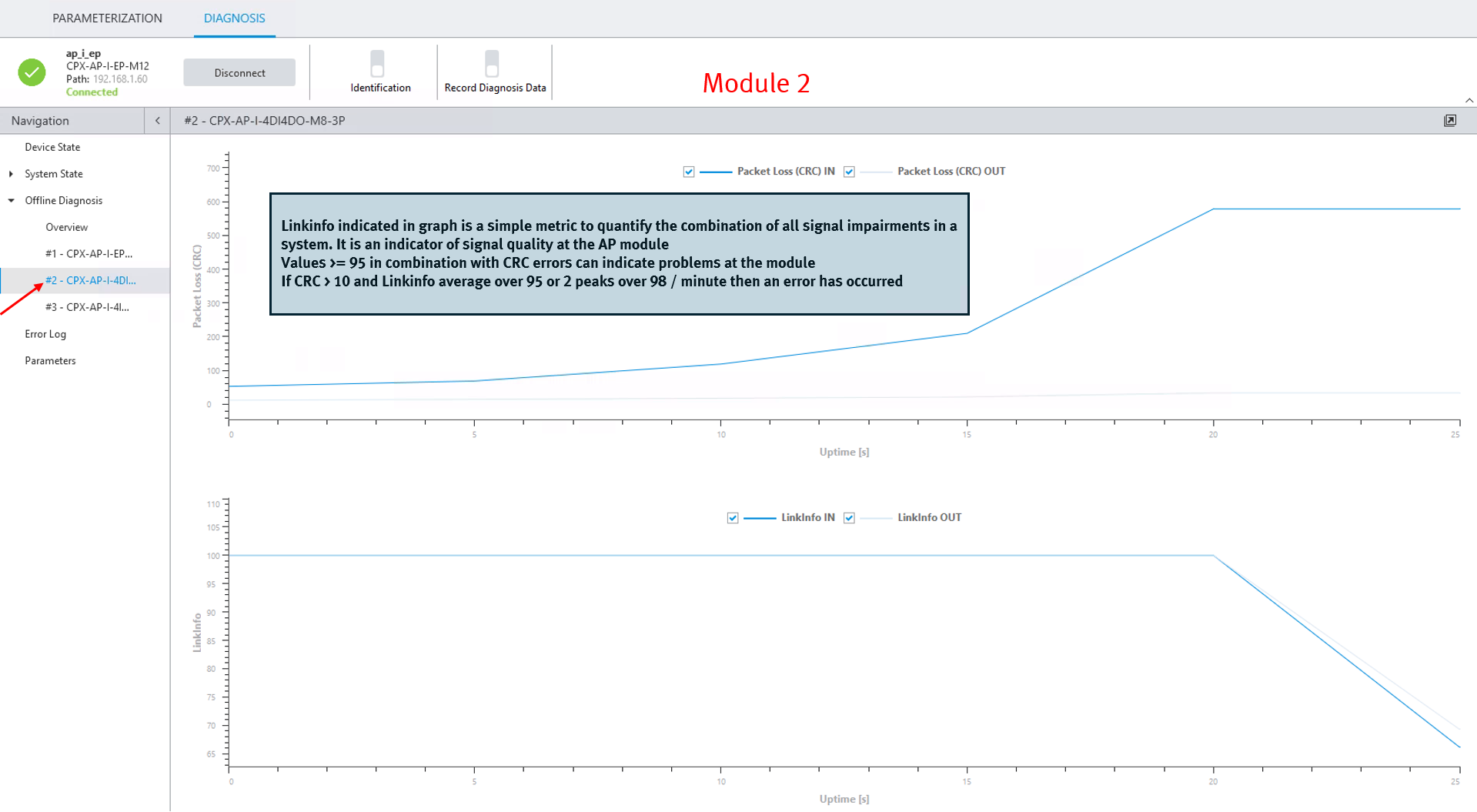

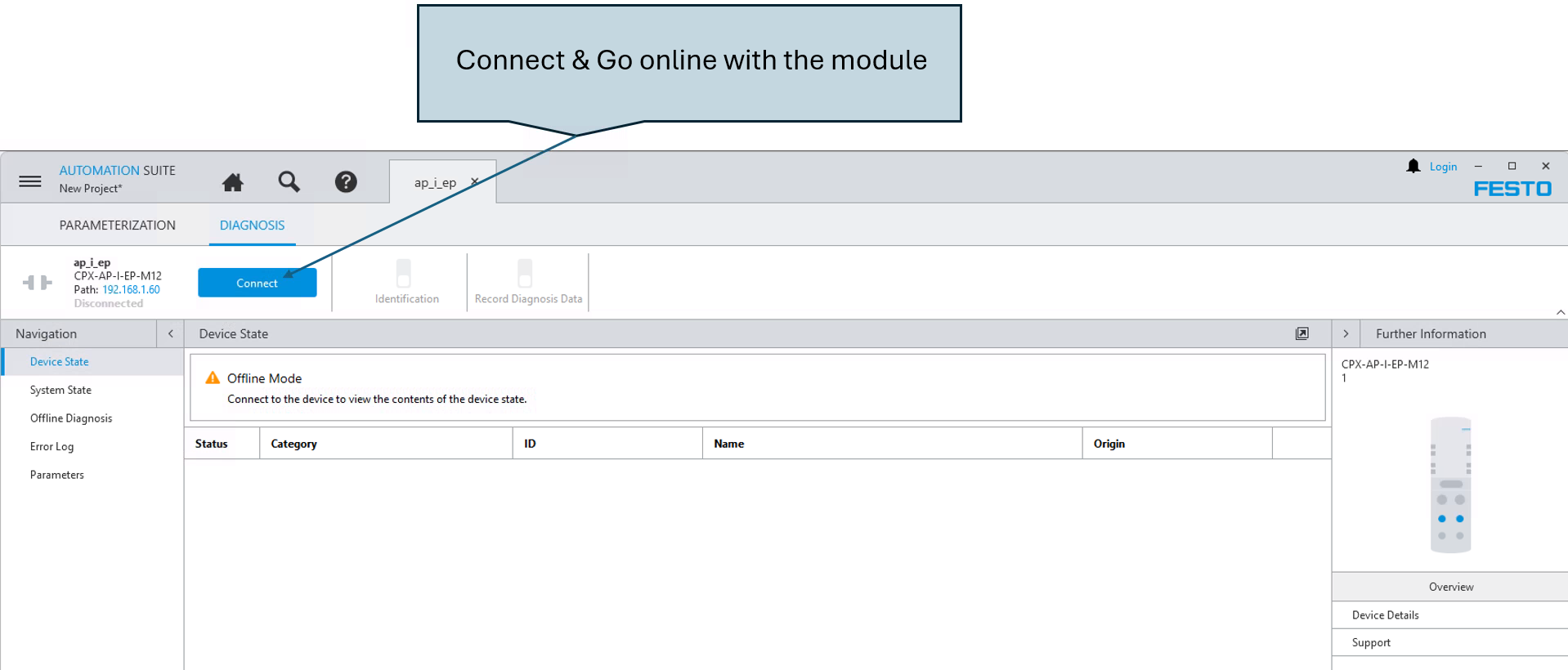

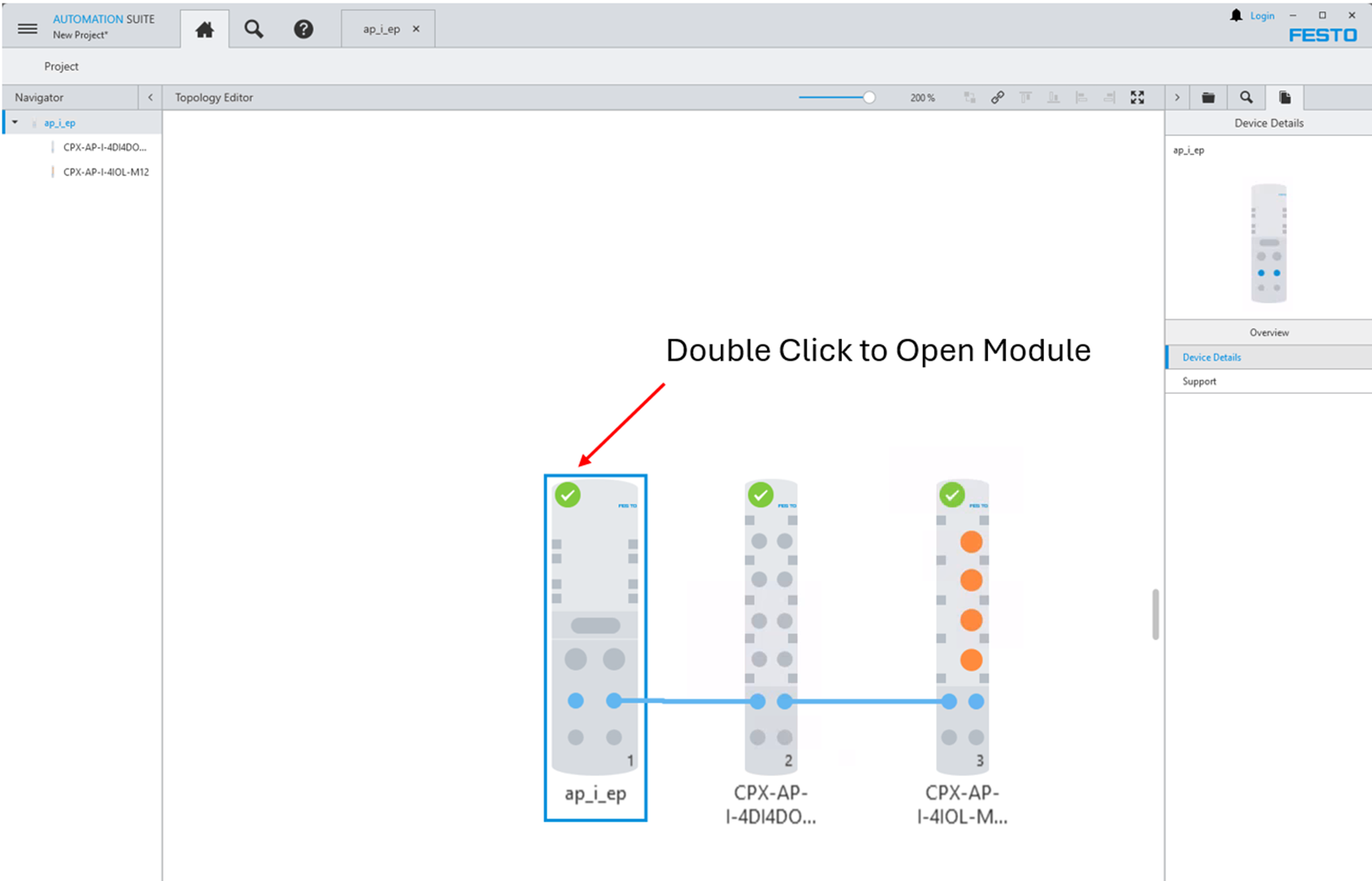

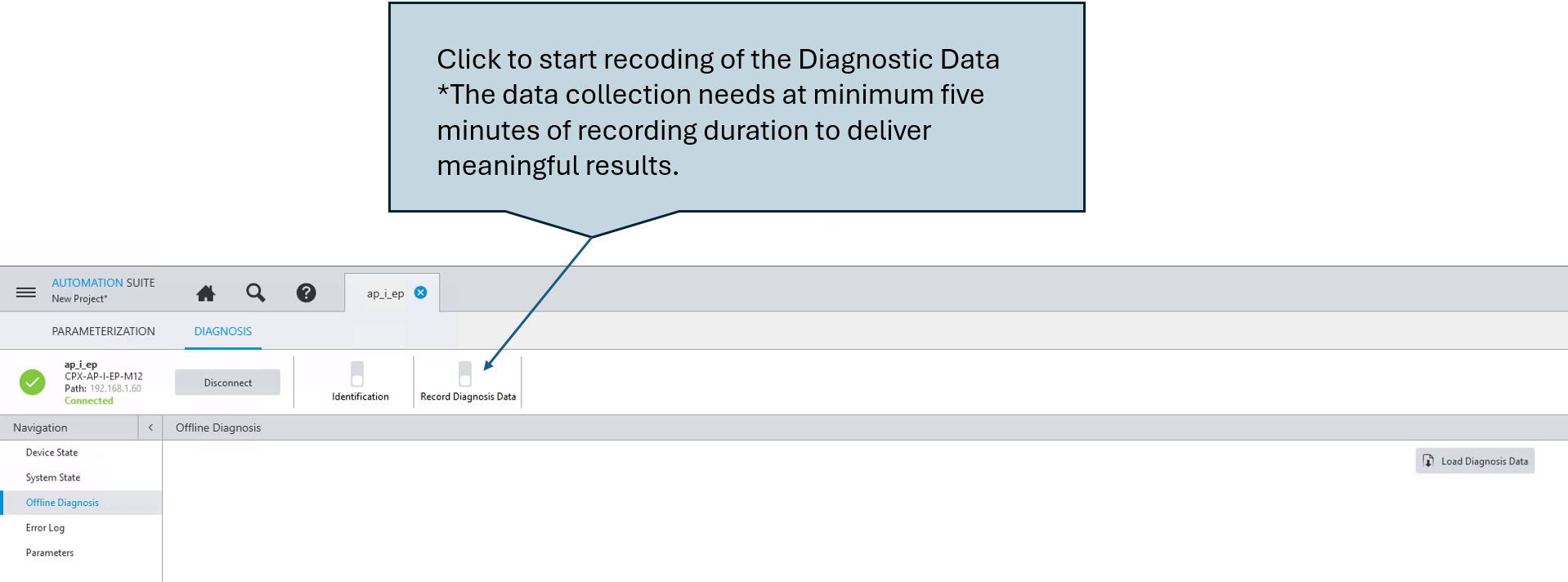

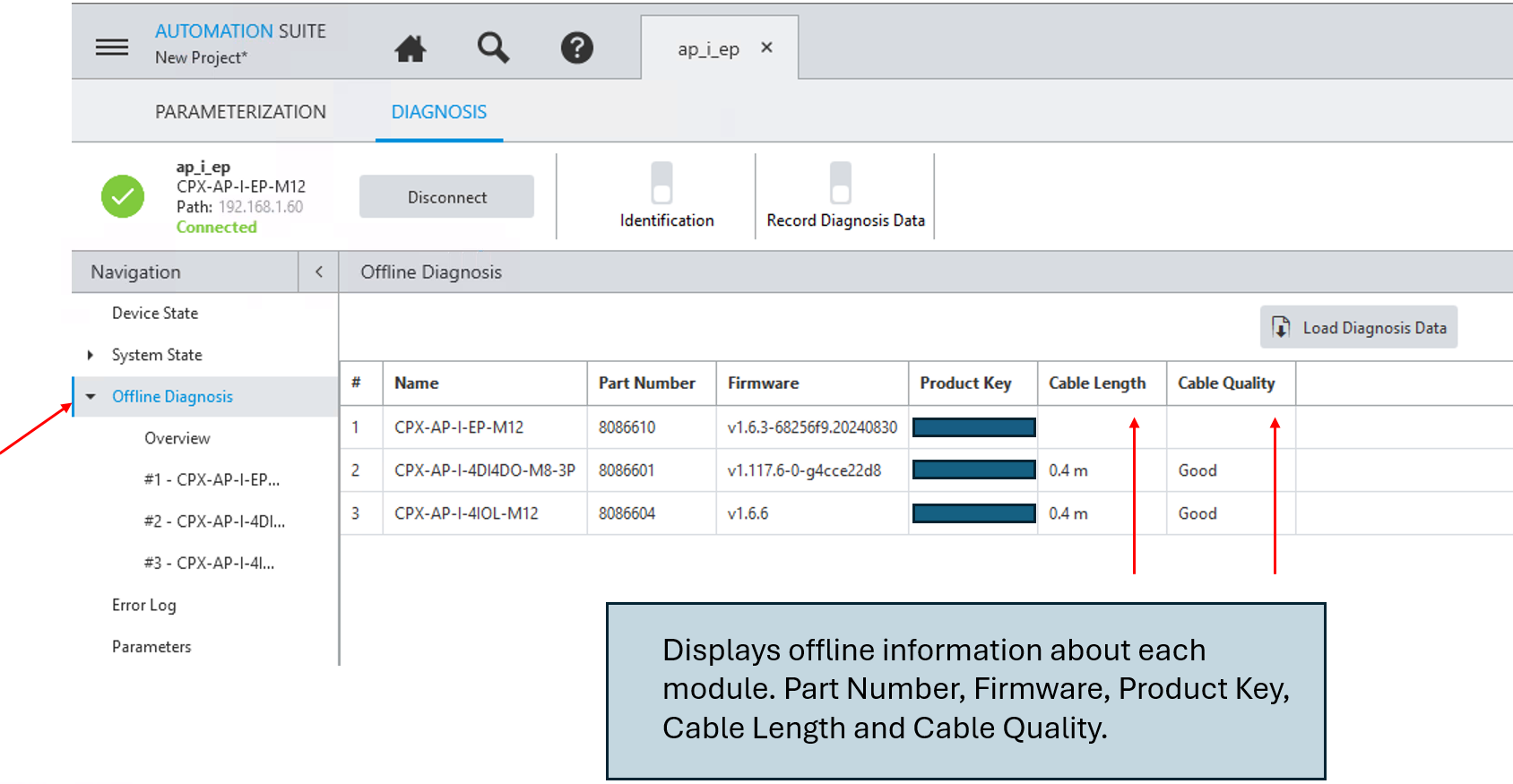

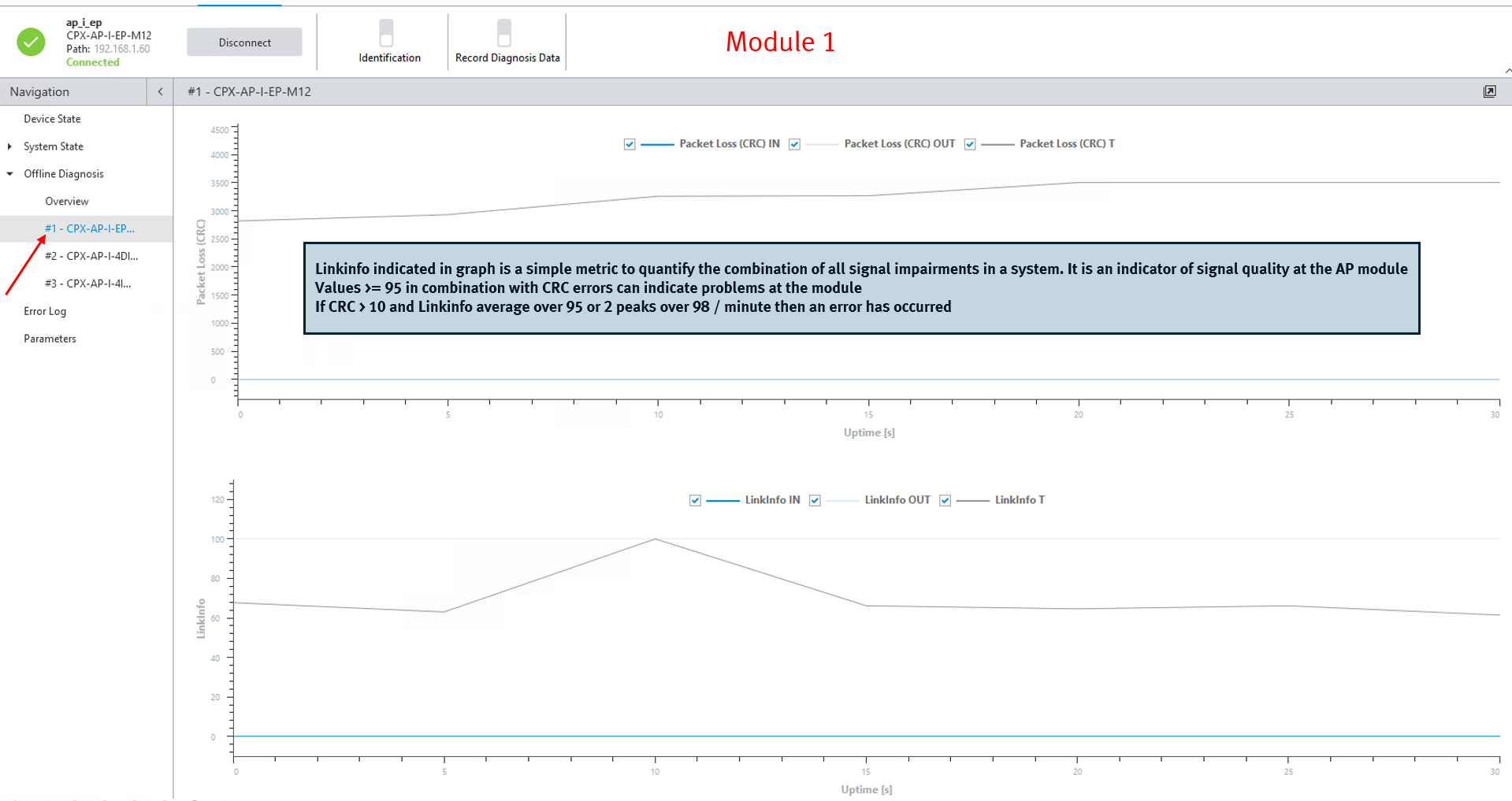

The following screenshots are taken from the Festo Automation Suite (FAS) software. This software package can be downloaded directly from www.festo.com
Disclaimer
This post is provided solely for the purpose of offering setup assistance and general guidance. It is important to note that the ultimate responsibility for ensuring the overall safety and proper functionality of the machine lies with the System Integrator / End User. It is crucial to exercise caution, adhere to proper safety protocols, and consult relevant experts or professionals when necessary.
Although Festo employees will be contributing to this blog, please note this is not the official Festo support channel. For more timely technical support please reach out to your regional Festo support channel and/or consult user manuals and relevant documentation in www.festo.com
